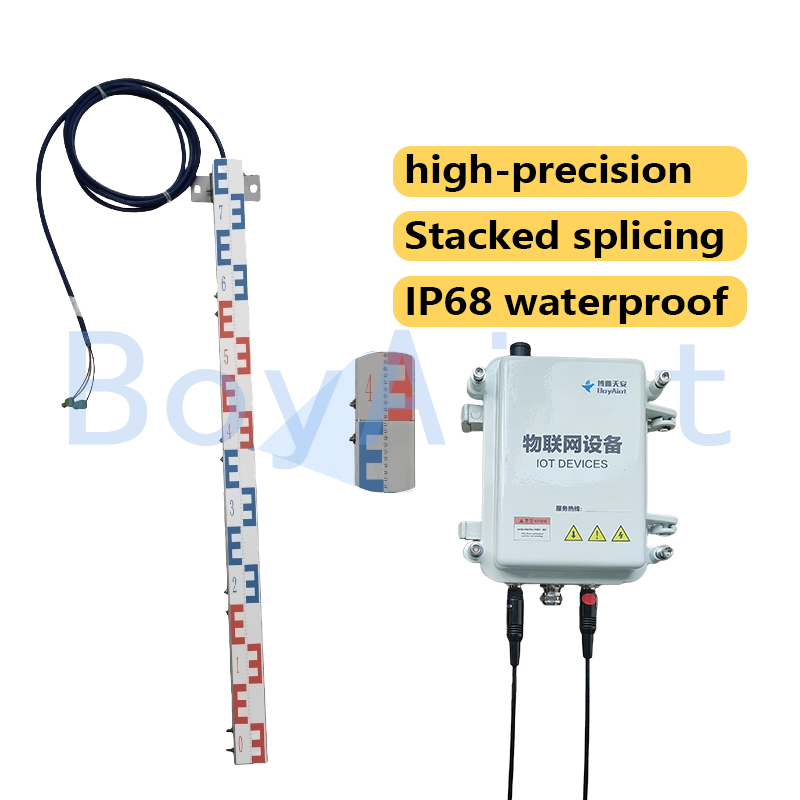

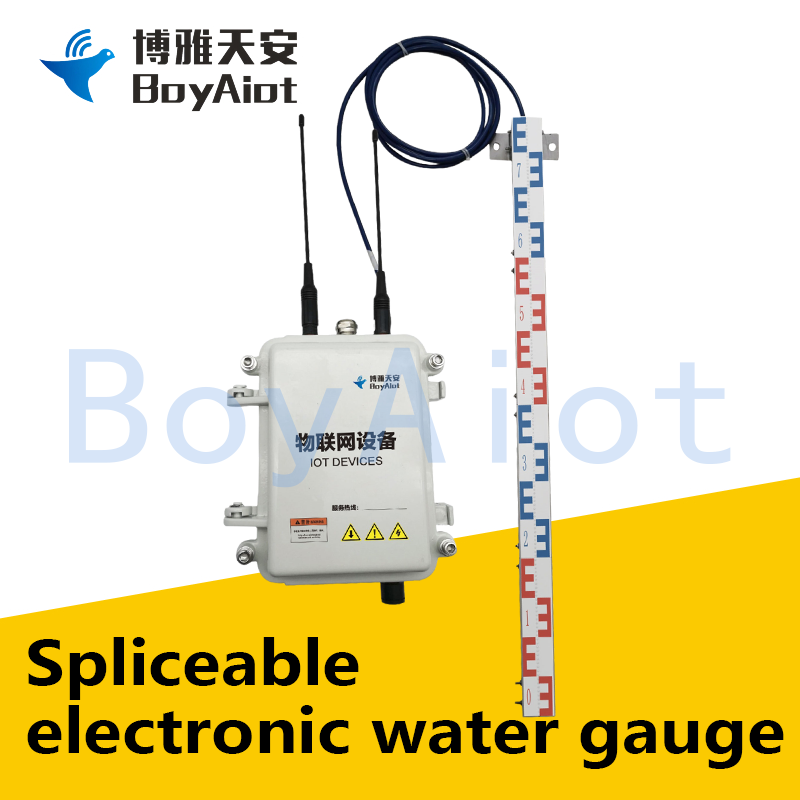

BOY-SW02-LR Electronic Water gauge

Product features:

1.High precision measurement: Water level measurement accuracy is 0.5cm, constant regardless of range expansion.

2.Can cascade stitching: support 20 cm / 40 cm, 60 cm / 80 cm / 100 cm etc. Different combination units

3.The whole machine IP68 waterproof and moisture-proof, in the harsh environment to protect the body

Previous product: BOY-SW08-FM06 Telemetry terminal Radar Water Level Gauge

Next product: BOY-SW08-FM05 Digital display Radar Water Level Gauge

Cellphone(Whatsapp/Wechat):

Mr. Lin: +86 13960777235

technical consultation

▋ Video Description

▋Product Description
Electronic water level gauge is a kind of equipment that uses the principle of water micro-conductivity to measure water level, IP68 waterproof grade, can be splicing a variety of ranges, with stable and reliable, convenient installation, automatic measurement and reporting characteristics.

▋ Main Function

Function	Description
Data acquisition	Collecting water level information
Data storage	Process, encode and store the collected data
Communication mode	RS485 data transmission
Communication protocol	Support Modbus communication protocol
Low-power operation	Work supports low-power sleep mode
Class of protection	Protection Grade Anticorrosive pressure watertight glue, IP68 protection grade

▋ Product Characteristics
BOY-SW02-LR electronic water gauge adopts the principle of contact measurement, aiming at the shortcomings of traditional water level sensors such as zero drift and temperature drift, and combining with many years of hydrological measurement experience. It has the characteristics of high measuring precision, stable and reliable, easy to use, etc.


Integrated molding	Multi-environment application	Remote telemetry
Integrated design, product molding, easy to install	Integrated design, product molding, easy to install	Integrated design, product molding, easy to install

High stability	Long standby	High precision
No mechanical moving parts, effectively prevent interference	Low power consumption design, long time online monitoring	Does not change with the expansion of the range no zero drift and temperature drift

▋ Product Parameter

Hardware system
Processor	32-bit ARM Cortex-M4 processor core
Data storage	16MB
Water level parameter
Water level range	40cm、80cm、120cm、160cm、200cm、240cm、320cm、400cm
Resolution	0.5cm
Measurement accuracy	0.5cm
Interface type
Power interface	Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection
Serial port	1 group of RS485 ports
Serial port	Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5, and 2 Check: none check, odd check, even check Serial port rate: 1200-115200 BPS
Mains supply
Standard power supply	DC 12V
Power supply range	DC 5-16V
Physical characteristics
Shell protection	Class IP68, enclosure and system securely isolated
Overall dimension	Sensor: 45 ×37 × 120mm + 45 ×37 × measuring range (excluding mounting parts)
Weight	Sensor: 20g/cm(range) + 500g(excluding mounting parts)
Environmental parameter
Operating temperature	-15℃ to +55℃
Storage temperature	-35℃ to +70℃
Relative humidity	95%RH(no condensation cream)

▋ Product Size

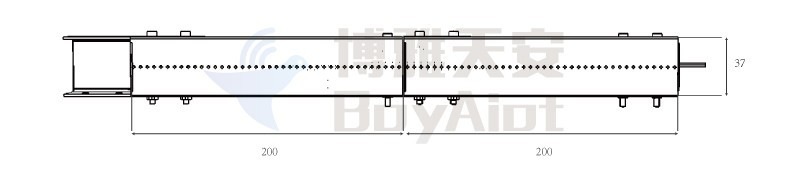

1614565405322845

▋ Measurement Method

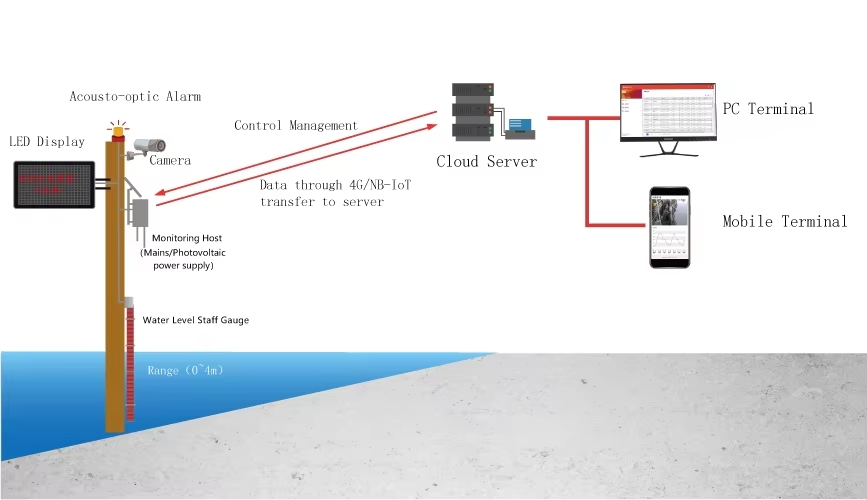

The electronic water gauge measures the water level height of river, irrigation area and underpass in real time through the induction contact principle, and reports it to the cloud server through 4G/NB-IoT and other communication methods, providing data support for the command and decision-making of industry users, and improving the hydrological measurement capability.

▋ Installation Method

The Wall-mounted vertical installation is often used in the measurement scenarios of road water, culvert water, reservoir, river and lake.

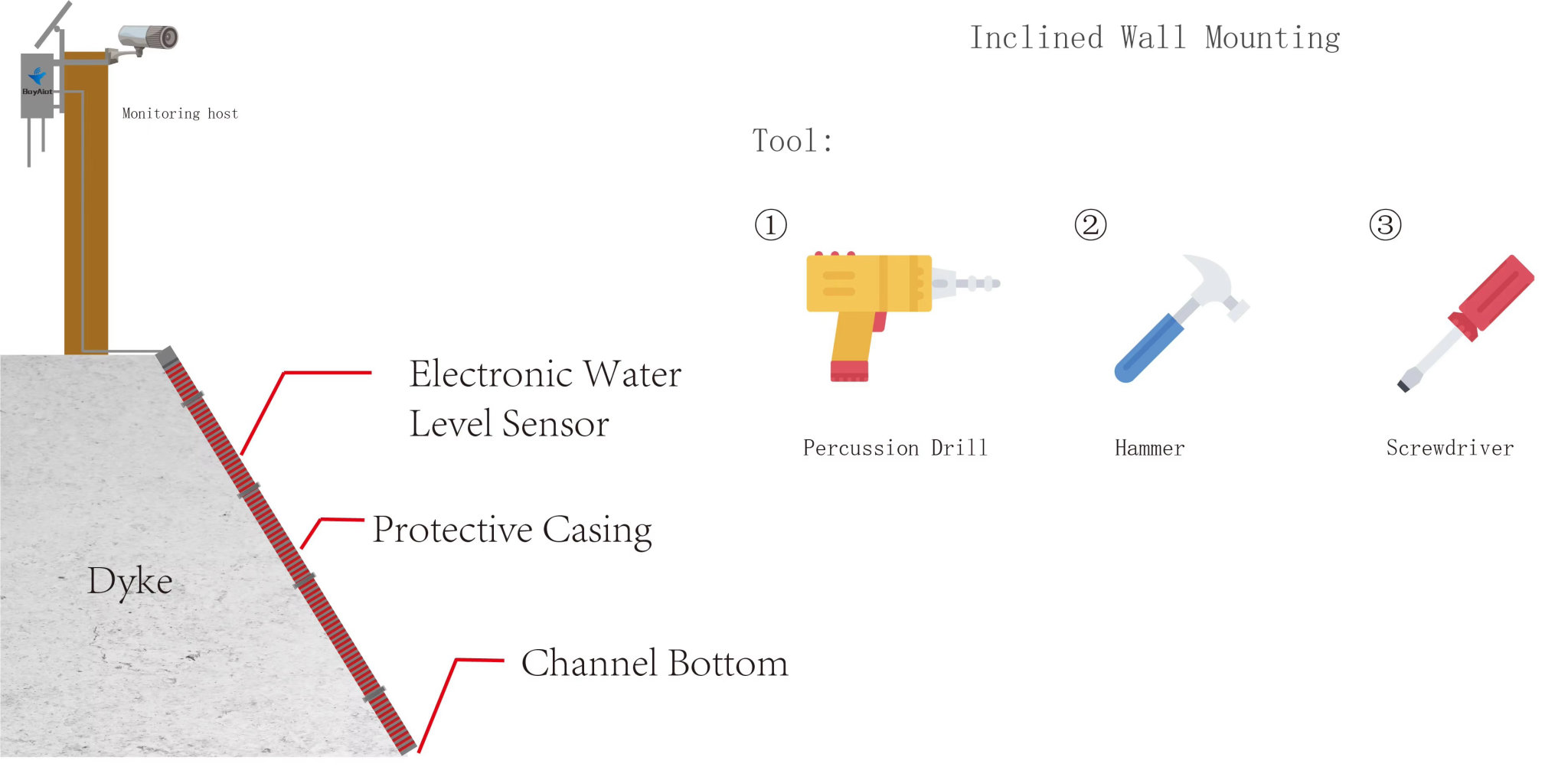

The Wall-mounted inclined installation is often used in agricultural channels, irrigation channels, DAMS and other measurement scenarios

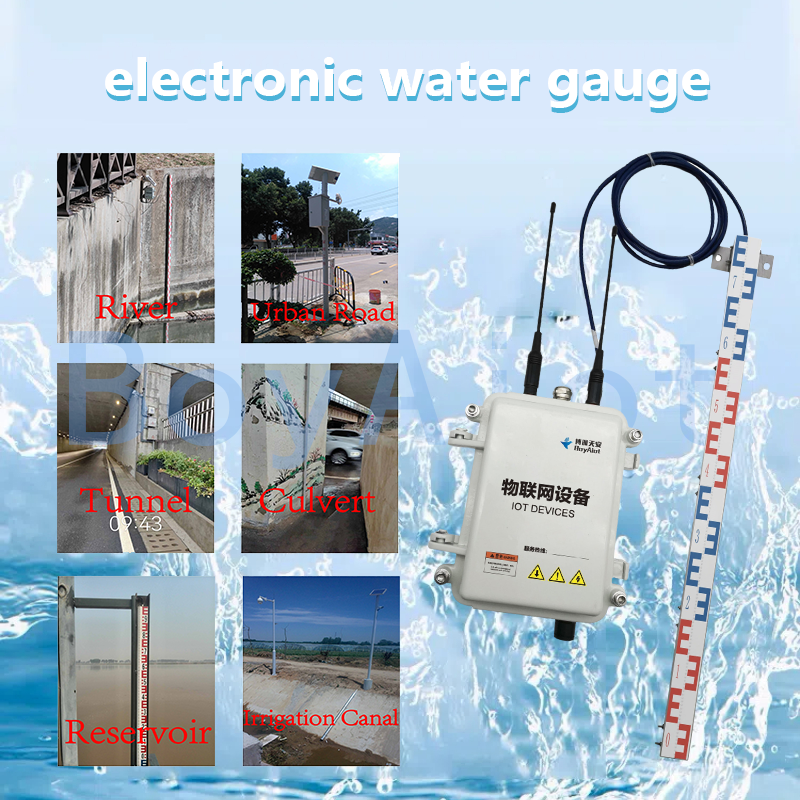

▋ Application

BOY-SW02-LR electronic water gauge can measure water level by means of inductive contact measurement principle, built-in data transmission unit and lithium battery, which solves the complicated problems of urban construction. It is suitable for the real-time water level measurement of the lower interchange water, reservoir, river lake, agricultural canal irrigation canal and other scenarios.
▋ FAQ

1. electronic measuring principle?

The electronic water gauge uses inductive contacts to measure the water level data of the electrode through the Microsoft conductivity principle of water.

2. electronic water gauge measuring range?

Electronic water gauges measure ranges from 0.8-4 meters. Range for 0.8/1.2/1.6/2.0/4.0/2.4/3.2 meters are optional.

3. Does the integrated electronic water gauge need an external communication module?

No need. The integrated electronic gauge is an integrated design that includes communication modules and batteries. It can report to the server through the built-in 4G full netcom module.

4. How long does the integrated electronic water gauge send data?

By default, the integrated water meter collects data at an interval of 15 minutes and sends data to the server at an interval of 1 hour. You can adjust the sending interval as required.

5. How long can the integrated electronic water gauge supply power? Do you need an external power supply?

The integrated electronic water gauge has a built-in 20Ah battery, which can be charged by mains power and solar energy (3W solar panel is standard). By default, it can work continuously for 5 months under cloudy and rainy conditions.
