BOY-WR04-P3 Submersible liquid level monitoring device

BOY-WR04-P3 Submersible liquid level monitoring device

Responsive, high precision, low cost, large range
Product features:

  1. High anti-interference capability, diaphragm isolation technology, and frequency interception design.

  2. Broad adaptability, integrated circuit chip, wide-range voltage power supply, and overcurrent and overvoltage protection.

  3. Economical, compact structure, and easy to install.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Video Description



▋ Product Description

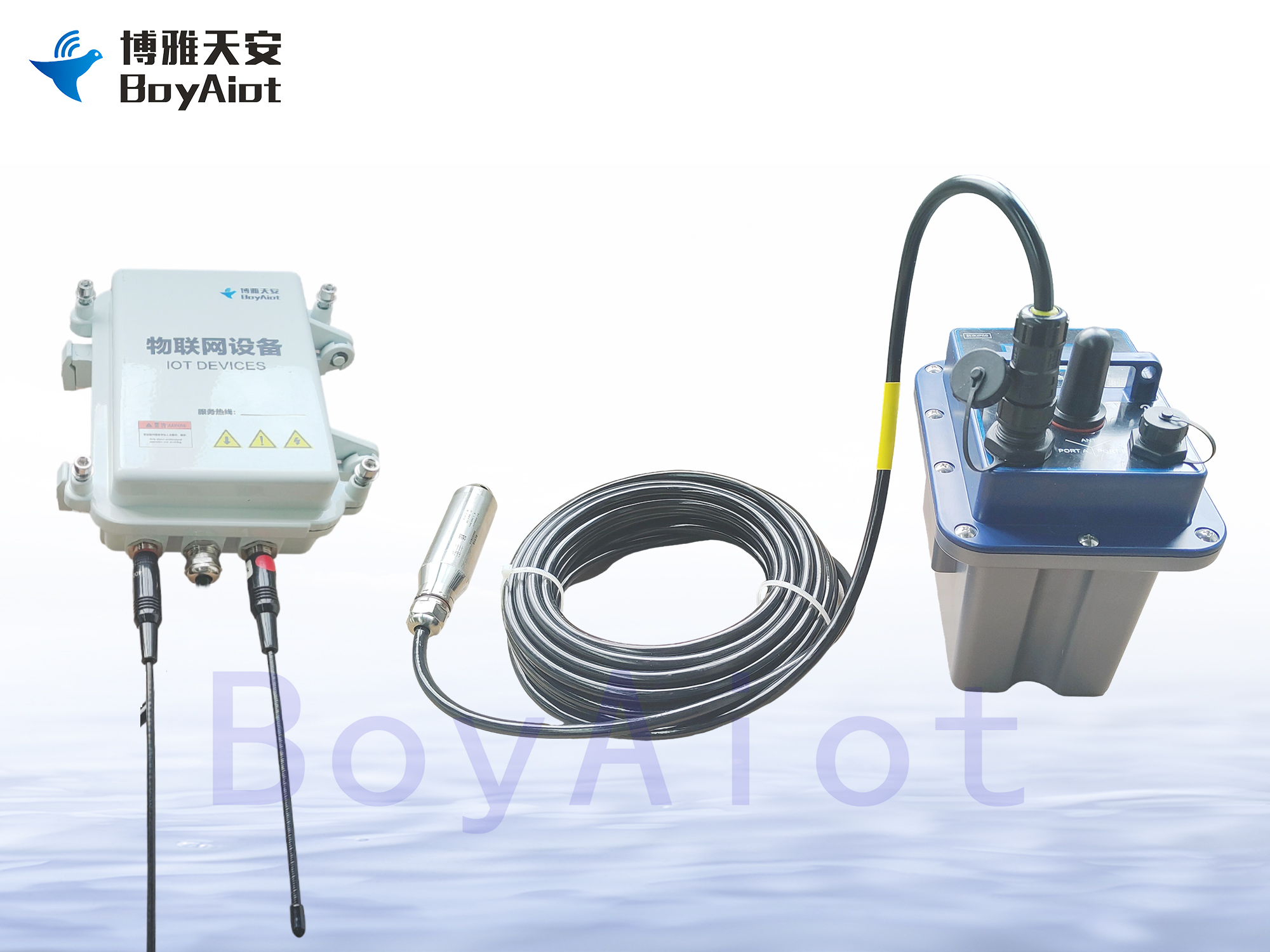

BOY-WR04-P3 submersible liquid  level monitoring device uses OEM pressure sensor with stainless steel isolation diaphragm as signal measurement element, and is automatically tested by computer. The zero point and sensitivity temperature compensation are carried out in a wide temperature range by laser resistance adjustment process. The amplifier circuit is located in the dry stainless steel housing and converts the sensor signal to the standard output signal. The submersible liquid  level monitoring device has the advantages of anti-interference, small temperature drift, high measurement accuracy, good stability and long life. Widely used in river, reservoir, groundwater, water supply and drainage, sewage treatment and other water level monitoring.

▋ Product Characteristics

yjld

azfb

ythcx

Responsive

Easy to install

Good stability

Grade A diffused silicon pressure sensor is used

Cable connection, put directly into the field

The amplifier circuit adopts the American integrated chip,

Wide voltage supply, reverse wiring and overvoltage protection

kglxq

syxq

dgh

Strong anti-interference ability

Fast response speed

Current limiting protection

Lightning protection, cut frequency interference design

Amplifier circuit adopts imported integrated chip, wide voltage power supply

Wiring reverse and overvoltage protection

▋ Product Parameter

Pressure type water level gauge

Water level parameter

Measuring medium

Liquid (compatible with contact material)

Measuring range

0 ~ 10m (customizable)

Accuracy level

0.1%FS, 0.25%FS, 0.5%FS

Working condition

Medium temperature -40 ~ 85℃

Temperature compensation

-10 ~ 70℃

Stability performance

±0.1% FS/ year

Overload capacity

200% full scale

Temperature drift

±0.01% FS / ℃

Environmental parameter

Supply voltage

12-36VDC

Ambient temperature

-40 ~ 85℃

Physical characteristics

Overall weight

Probe ≈290g, cable ≈60g per meter

Class of protection

IP68

Interface type

Power interface

Industrial grade terminal interface with built-in power reverse protection and overcurrent/overvoltage protection

Serial port

1 group of RS485 ports

Data bits: 5, 6, 7, 8 bits

Stop bits: 1, 1.5, and 2

Check: none check, odd check, even check

Serial port rate: 1200-115200 BPS



Waterproof Data acquisition terminal

Function

Description

Data acquisition

Water level, flow, water quality and other information

Data storage

Process, encode and store the collected data

Data display

The collected data is displayed locally

Parameter setting

Supports local parameter setting, remote parameter setting and Bluetooth wireless configuration

Bluetooth communication

Built-in Bluetooth Bluetooth communication, can achieve on-site Bluetooth debugging

Data read

Supports remote and local historical data extraction

Communication mode

Support 2G/4G/NB-IOT and other communication methods, support the main and standby channel automatic switching, support multi-center data transmission

Communication protocol

Comply with the requirements of SL651-2014 Hydrological Monitoring Data Communication Protocol

Power management

Built-in large capacity lithium battery, long standby

Communication mode

Support 2G/3G/4G and other communication modes, support the main and standby channel automatic switching, support multi-center data transmission

Low-power operation

Supports low-power sleep mode

Class of protection

IP68 protection grade, high temperature and corrosion resistance

Installation mode

L-shaped bracket hanging wall installation, easy installation and maintenance


▋ Product Size

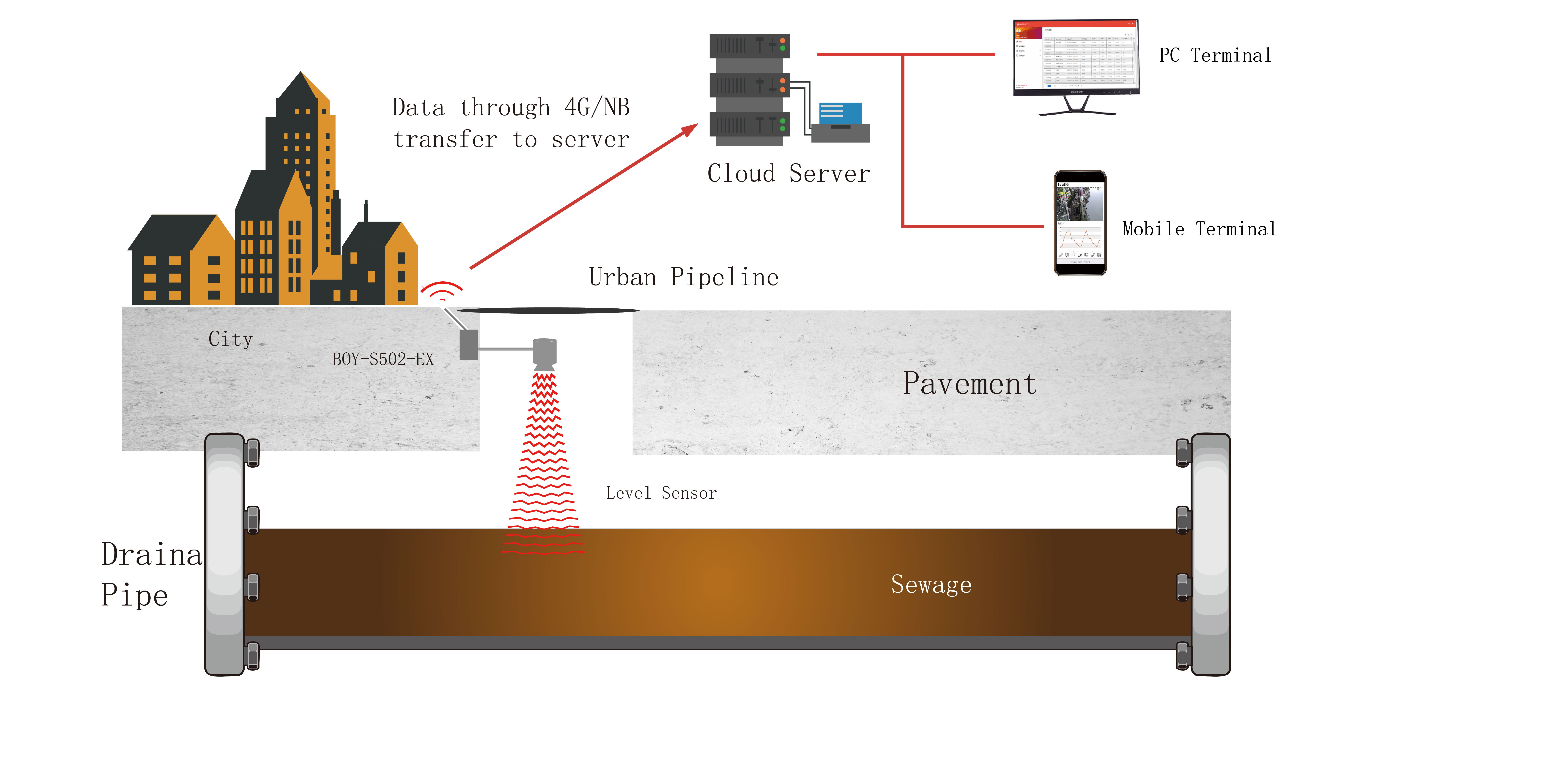

▋ Measurement Method

BOY-WR04-P3 submersible liquid  level monitoring device has the advantages of anti-interference, small temperature drift, high measurement accuracy, good stability and long life. Widely used in river, reservoir, groundwater, water supply and drainage, sewage treatment and other water level monitoring.

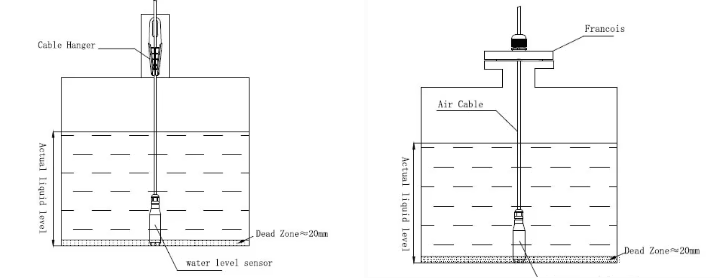

▋ Installation Method

When the liquid level fluctuation is large, measures should be taken to fix the probe part of the liquid level gauge, you can insert or install a steel pipe or PVC pipe larger than the diameter of the probe in the water, and open a number of φ5mm holes in the pipe at different heights in the opposite direction of the water flow, so that water can enter the pipe.

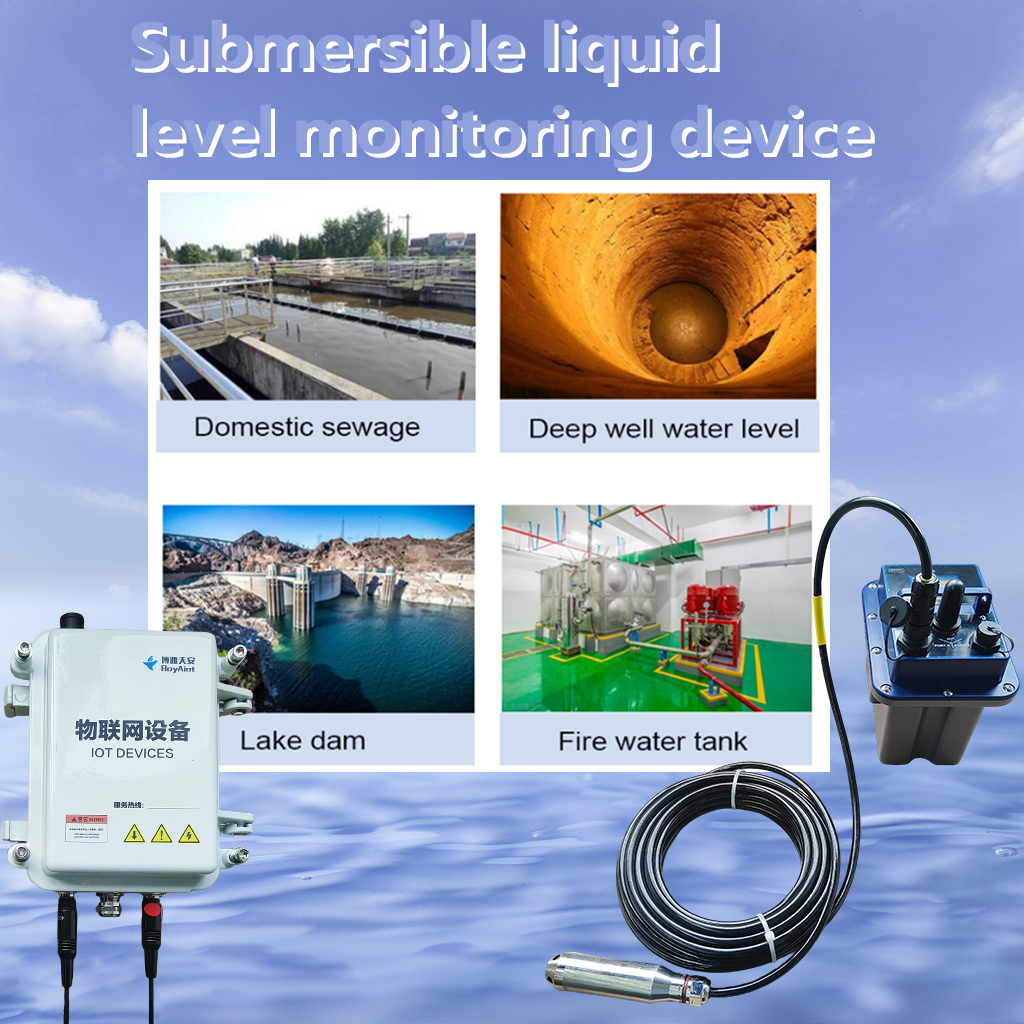

▋ Application

Suitable for: river/reservoir hydrological monitoring, mountain flood disaster monitoring, water resources monitoring, municipal urban management monitoring, underground water supply and drainage monitoring, Marine tide station, buoys environmental data monitoring and other real-time monitoring scenarios.



▋ FAQ

1. Equipment measurement principle?

A: When the sensor is put into a certain depth of the measured liquid, the pressure of the measured medium is introduced into the positive pressure chamber of the sensor, and the atmospheric pressure on the liquid surface is connected to the negative pressure chamber of the sensor through the cable airway to offset the front of the sensor, so that the sensor can measure the pressure, and the liquid level depth can be obtained by measuring the pressure

2. What is the range of the equipment?

A: The default measuring range is 0 ~ 10 meters, and the larger measuring range needs to be customized.

3. What is the measuring accuracy of the equipment?

A: The measurement accuracy is not higher than 0.5%, such as 10 meters range, the accuracy is 5cm.

4. Can the equipment be waterproof? Will water flooding damage the equipment?

A: Can be waterproof, equipment IP68 protection level.

5. Device communication method? What communication protocols are supported?

A: Supports RS485 communication and Modbus communication.
