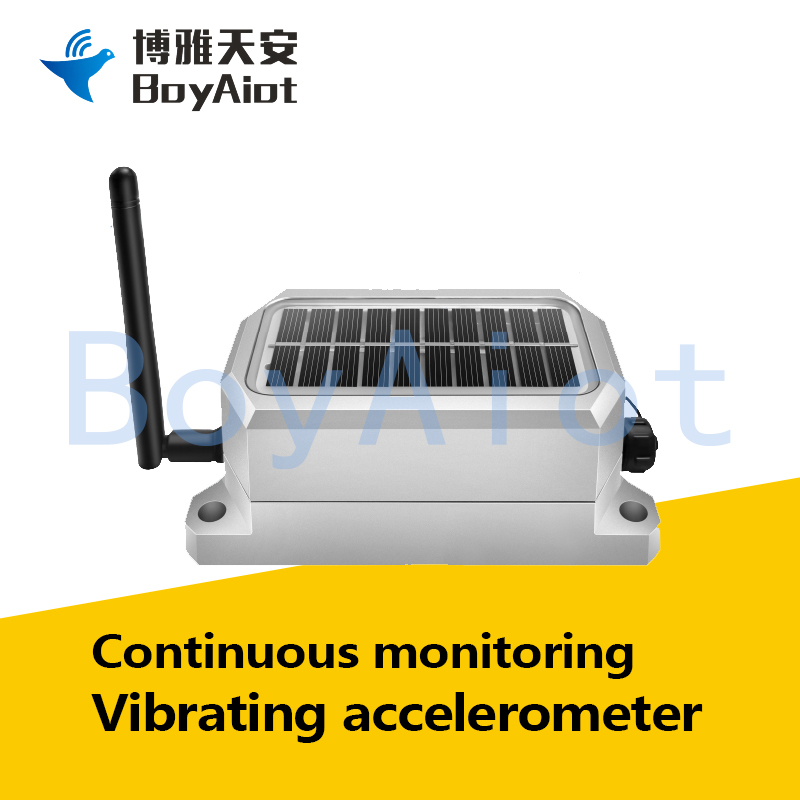

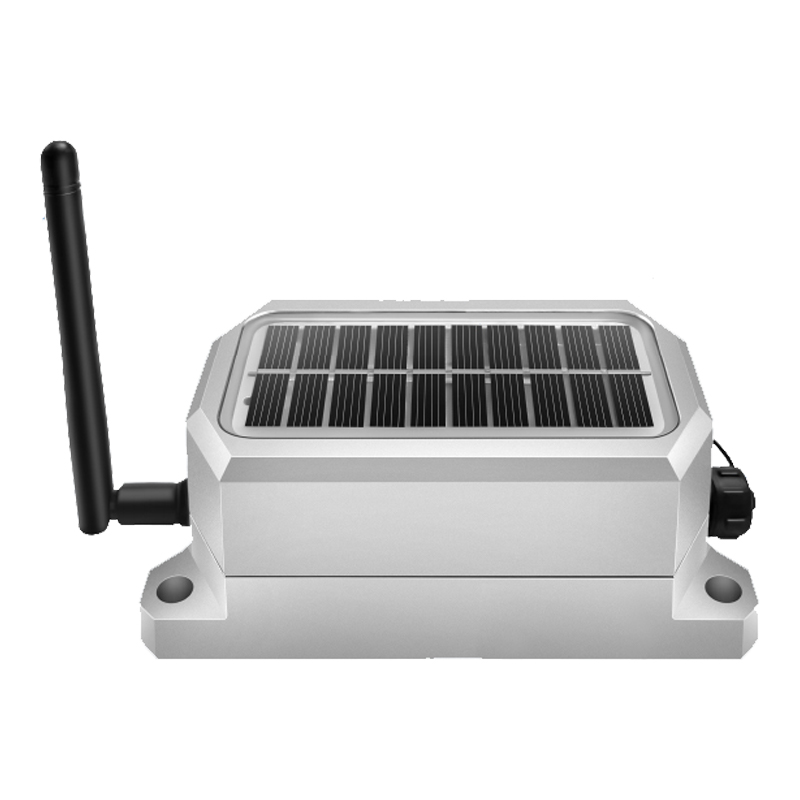

BOY-MS03 Intelligent Vibration Accelerometer

BOY-MS03 Intelligent Vibration Accelerometer

High precision monitoring, long battery life, low-power design
Product features:

1. Real-time uninterrupted monitoring of vibration data

2. Anti-interference, high reliability, long battery life

3. Exquisite and lightweight, simple installation

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

BOY-MS03 is a smart vibration accelerometer developed using MEMS technology. It features a high-performance ARM processor that can perform real-time local calculations of characteristic values. Protocol outputs: X-axis, Y-axis, Z-axis vibration frequency (Hz), vibration acceleration (mg), vibration velocity (mm/s), vibration amplitude (μm), and tilt angle (°). Based on real-time vibration monitoring, it reports characteristic values for online analysis to determine impact forces and their effects on structural stress.



▋ Working principle

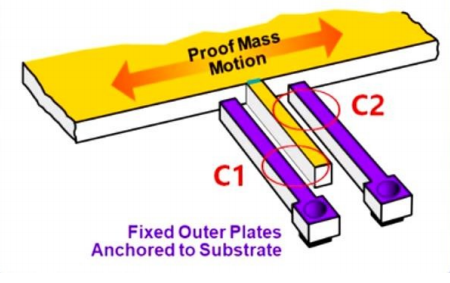

The intelligent vibration accelerometer based on the vibrating wire principle is an integrated three-axis accelerometer using capacitive MEMS technology, featuring XYZ triaxial acceleration, RS485 digital interface, 4G-Cat1 wireless communication module, and solar panel. It integrates sensing measurement elements and mixed-signal ASIC application circuits internally, with processed sensor signals flexibly output through the digital interface.

 ▋  Product Parameter

Vibration acceleration range

±2g/±4g/±8g

Acceleration vibration accuracy

±1mg

Vibration velocity range

0~1000mm/s

Vibration velocity accuracy

0.01mm/s

Vibration frequency range

0.2-400HZ

Vibration frequency accuracy

0.1HZ

Amplitude range of vibration

0~500000μm

Amplitude variation accuracy

5μm

Inclination range

±90°

Inclination accuracy

0.02°

Vibration sampling frequency

500Hz

Standby power consumption

0.036w

Work power consumption

0.42w

Network communication mode

4G

Serial communication mode

RS485

External power supply voltage

9-36v

levels of protection

IP68

battery capacity

6400mAH

▋ Application scenarios

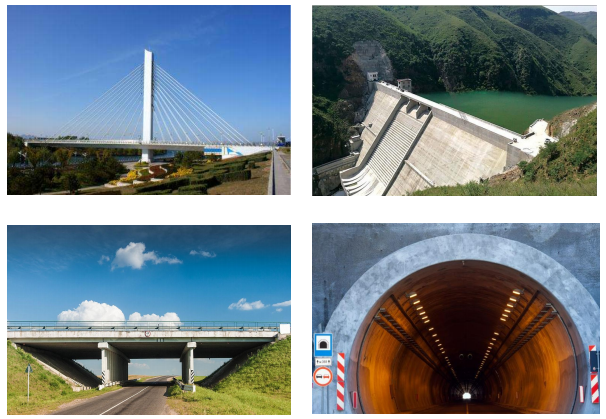

Mainly used in seismic monitoring; Vibration monitoring of dams, bridge cable displacement, pier impact monitoring, tunnels, underground works, near-field blasting, drilled wood/brick concrete houses, and ancient buildings.
