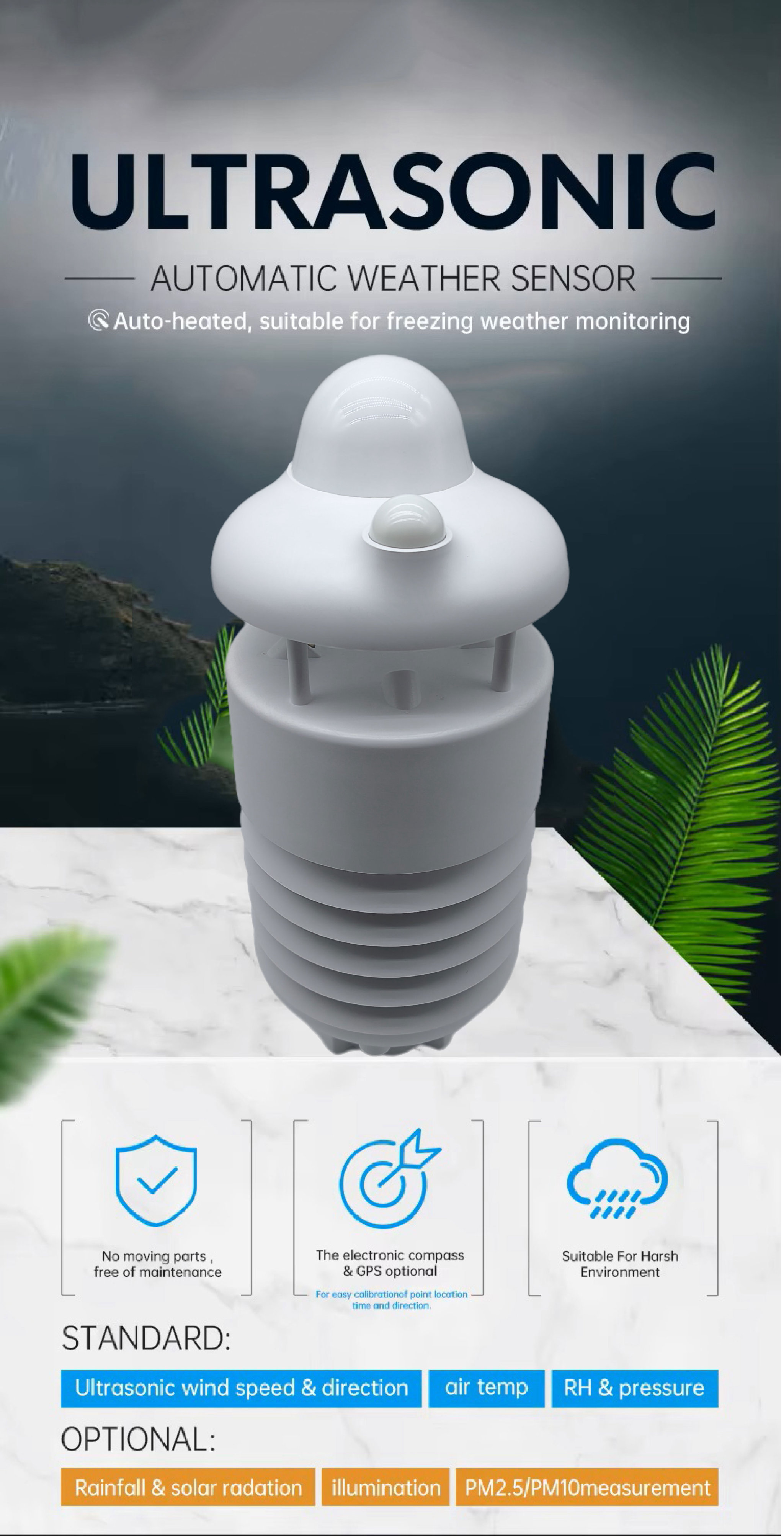

BOY-AWS-10 Ultrasonic Weather Sensor

BOY-AWS-10 Ultrasonic Weather Sensor

Product features:

1.  Easy installation: beautiful appearance, integrated wiring.

2.  Stable structure: integrated, works in harsh environments.

3.  High stability: Anti-interference, stable output.

4.  High integration: Monitors ten types of data.

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

       BOY-AWS-10 Environmental and weather data can be collected and monitored, measuring 10 parameters: air temperature, relative humidity, barometric pressure, light intensity, rainfall, wind speed, wind direction, PM2.5, PM10, and CO2. The equipment adopts the industrial grade design index, can work stably in the harsh outdoor environment of -40℃~+85℃, and supports Modbus-RTU and ASCII protocols based on RS485, as well as SDI-12 protocols.

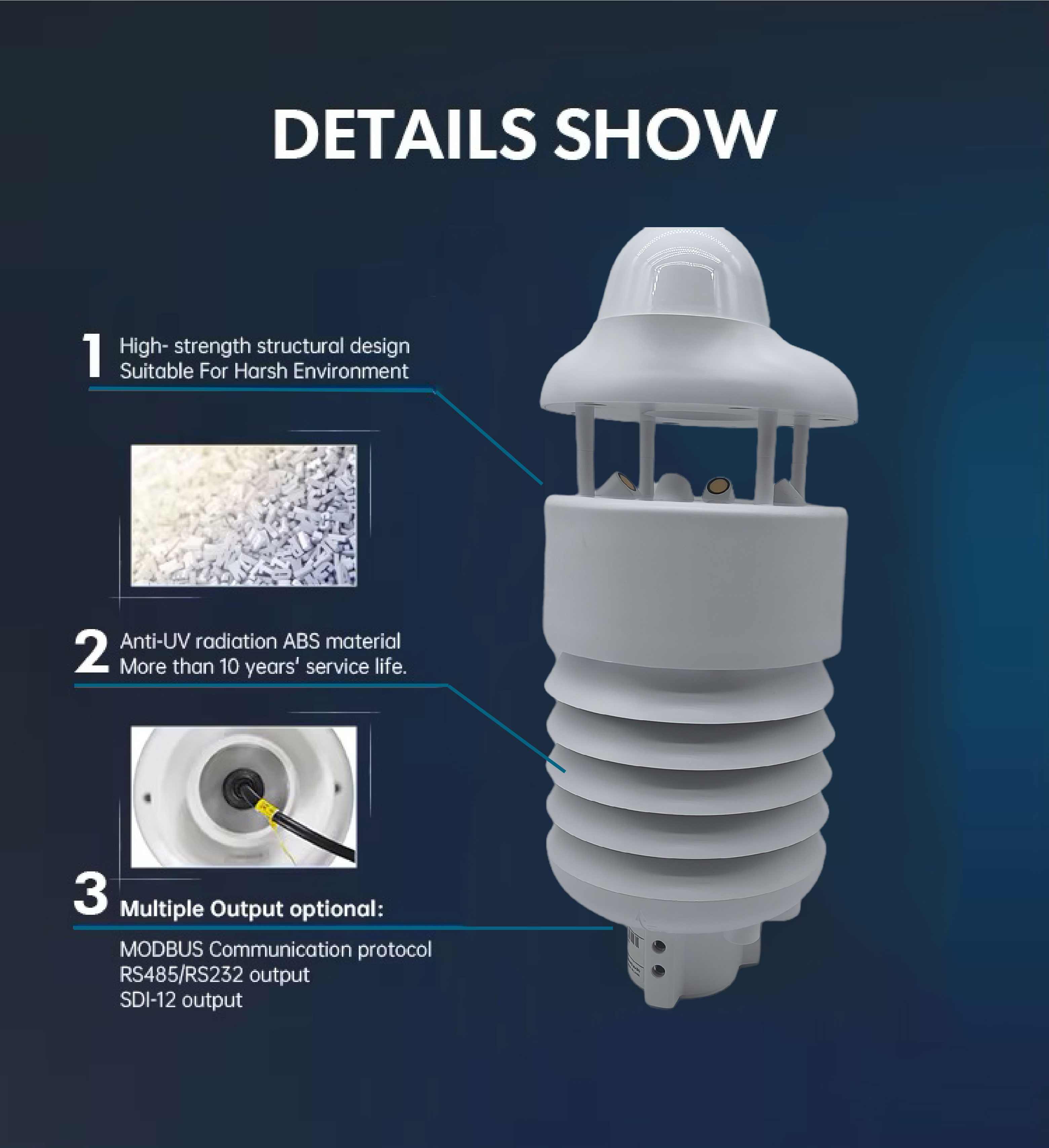

▋ Product Details



▋ Product Parameter


Parameter
Index
Humidity range
0%RH~100%RH
Temperature range
-40~85°C
Atmospheric pressure
300~1250hPa
Rainfall range0~200mm/h
Wind speed range
0~60 m/s
Wind direction range
0°~360°
Light intensity
0~200,000Lux
PM
0~1000μg/m3
CO2
400~10000 ppm
Power supply
12VDC,AC220Vsolar power option
Class of protection
IP65

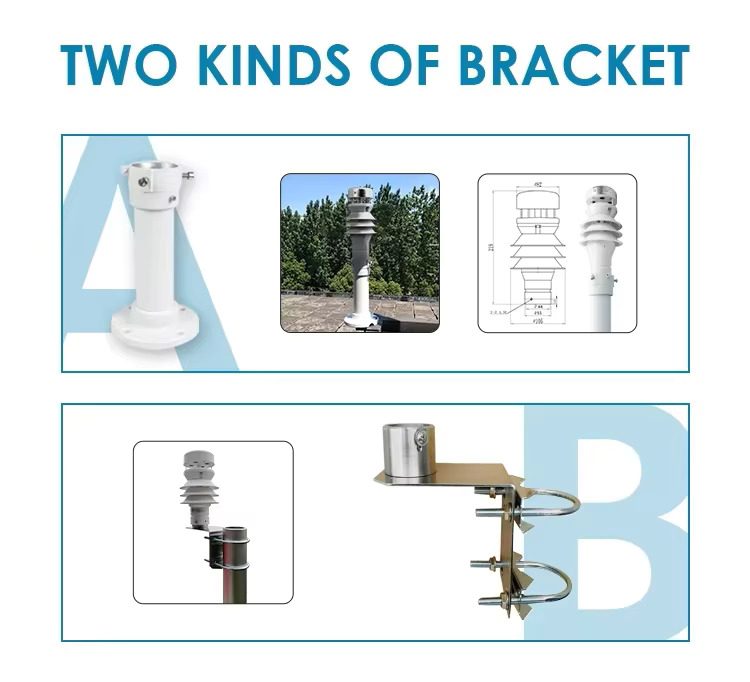

▋ Installation Method

      The equipment adopts integrated structural design, beautiful appearance, all signal line interfaces are built-in, the product appearance is simple and beautiful, easy installation, can be easily completed by a single person.



▋ Application


▋ FAQ

1. The temperature sensor is faulty
First, use a multimeter to check the resistance value of the sensor and confirm whether the device is faulty. Secondly, clean the dust in time during routine maintenance.

2. The air pressure sensor is faulty
Use the serial port to connect the sensor to check the device running status. During routine maintenance, check the flatness of the static pressure close and whether the holes are blocked

3. The wind direction and speed sensor is faulty
It can monitor whether the measurement channel is faulty through the signal output of the equipment, and timely clean the dust and sand in the bearing clearance during daily maintenance to avoid bearing failure
