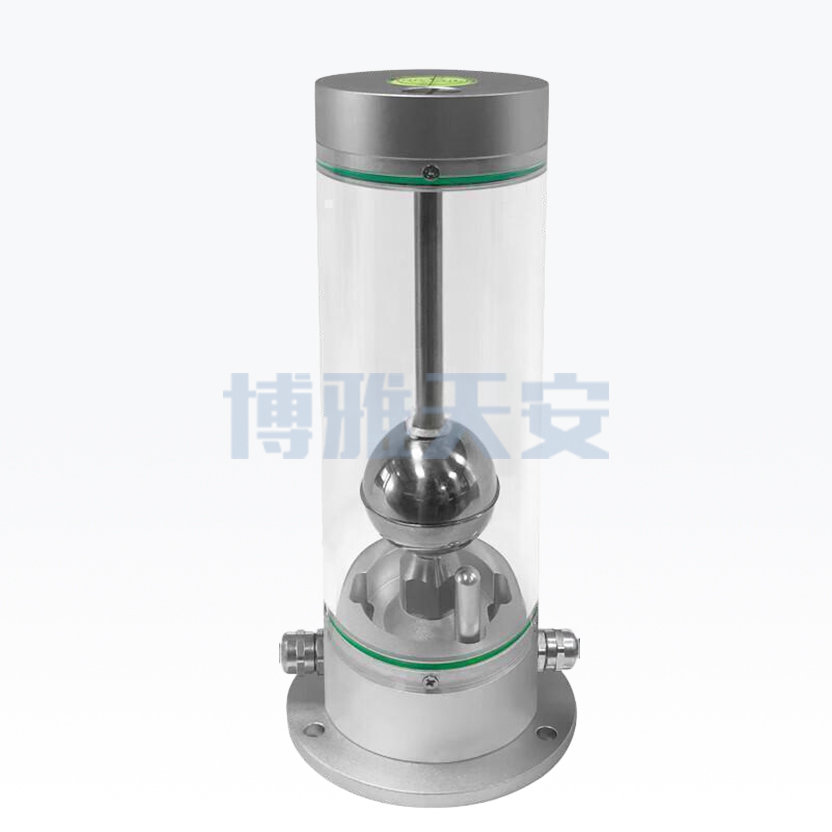

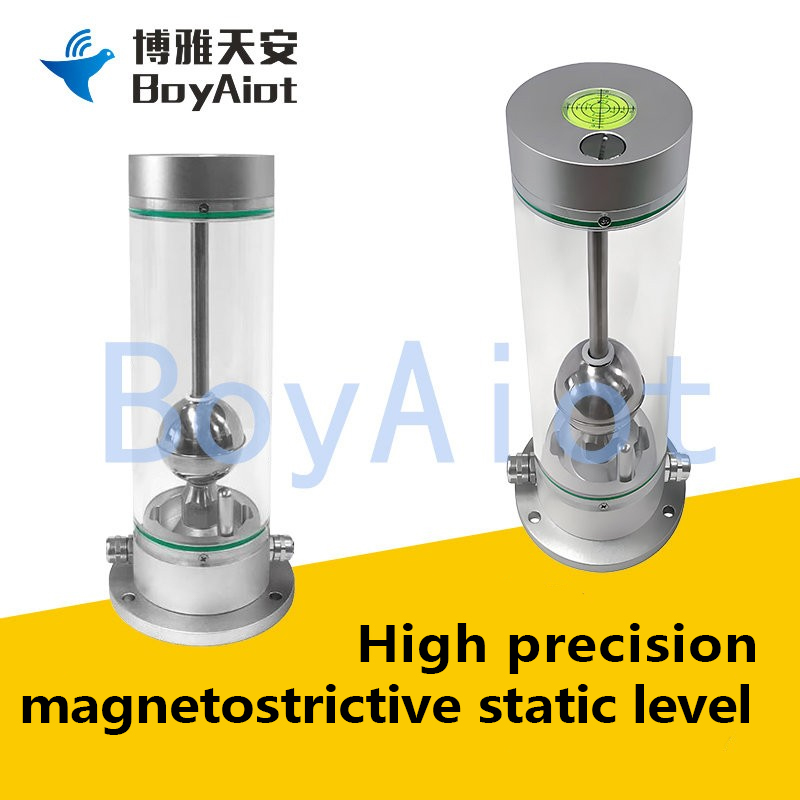

BOY-GC05 Magnetostrictive static level

BOY-GC05 Magnetostrictive static level

High precision, high protection, anti-interference real-time monitoring
Product features:

1. High measurement accuracy, capable of achieving millimeter level displacement detection

2. Integrated design, high stability, strong interference capability, suitable for long-term continuous observation

3. Easy installation and maintenance, no need for complex calibration, supports multi-point distributed deployment

4. Industrial grade protection, IP68 protection level, suitable for long-term stable operation in harsh environments

Cellphone(Whatsapp/Wechat):
Mr. Lin: +86 13960777235
 technical consultation

▋ Product Description

  BOY-GC05 Magnetostrictive static level is a high-precision liquid level measurement device based on the principle of magnetostriction, designed specifically for monitoring the structural settlement and deformation of large projects such as bridges, dams, and subways. Its millimeter level accuracy, strong anti-interference ability, and long-term stability make it the preferred tool for structural health monitoring in the industrial and infrastructure fields

▋ Working mechanism

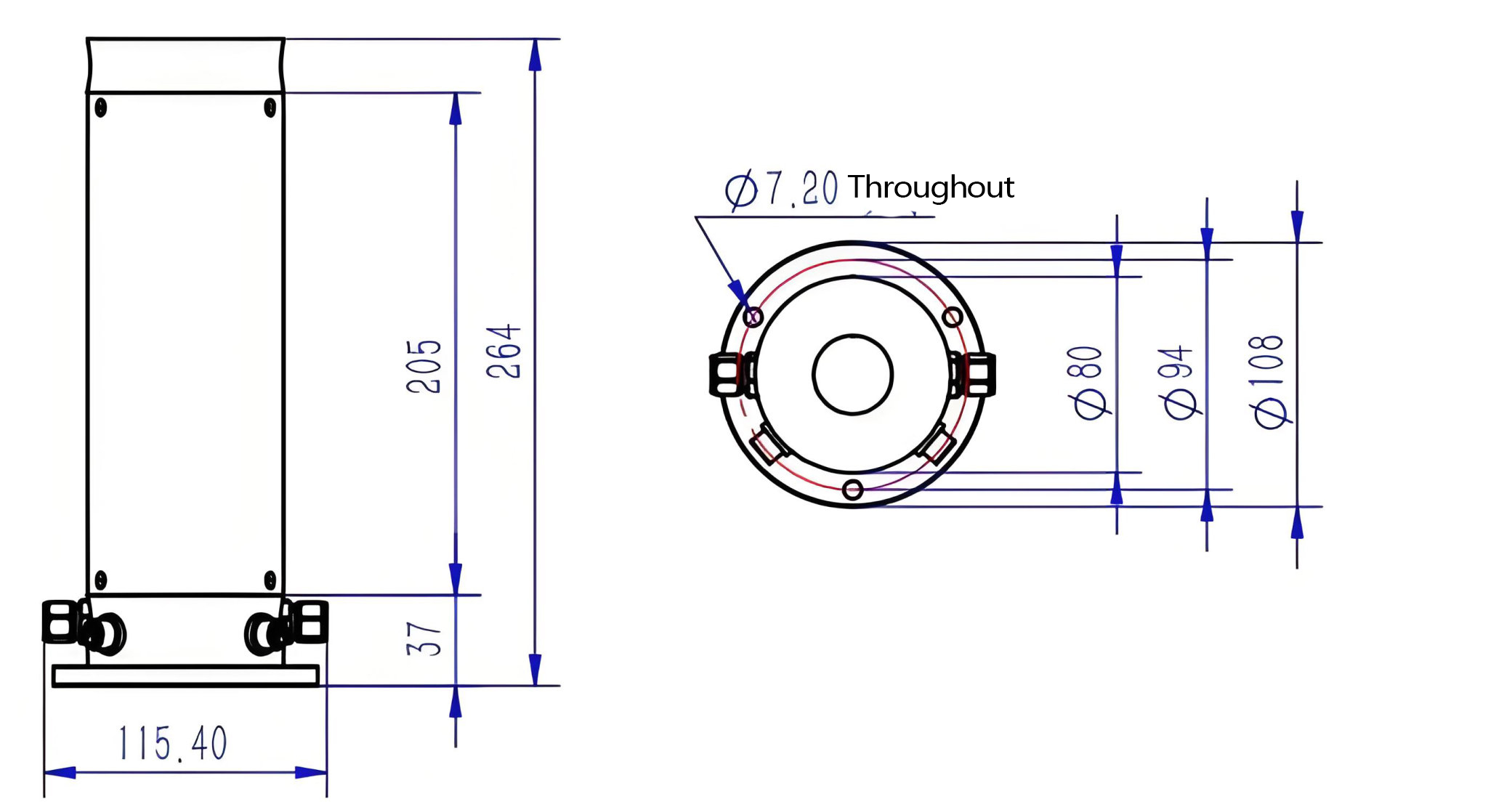

▋ Product Size


▋ Main Function

function

description

Multi-point monitoring

Multi-point distributed settlement synchronous monitoring

high-accuracy survey

The millimeter-level high-precision displacement measurement

data transmission

Real-time data acquisition and remote transmission (support for 4G / LoRa)

Automatic early warning

Over-limit automatic alarm and early warning push

temperature compensation

Temperature drift automatically compensation

data storage

Built-in large-capacity data memory card

Multi-protocol compatibility

Compatible with multiple industrial protocols (Modbus, RS485)

Low power consumption

Support for low-power sleep working mode

▋ Product Characteristics

BOY-GC05 The magnetostrictive static level tank is made of acrylic material, with visible liquid level for easy filling. Anti corrosion design, protection level IP68, can adapt to various harsh working environments. Optimized compact design scheme for similar products, breaking environmental limitations and meeting a wider range of monitoring environments. Unique integrated design, overall debugging of equipment, reducing equipment errors caused by multiple components. Built in 4G/LoRa dual-mode communication module, supports real-time data remote transmission and over limit warning, compatible with Modbus/RS485 industrial protocol, and can quickly access the smart monitoring platform. The measuring element and measuring medium are non-contact, and the sensor works reliably and has a long lifespan. The range can be customized to meet the usage needs of different application scenarios.

0a5c5874-ed4d-402b-912b-668042a0bfb4


zgzs

Non-contact regulation

integrated structure

Intuitive display

No wear and tear, long life

Reduce errors, installation and debugging to make profits

Acrylic tank, liquid level visible


5

61

Small beam angle

IP68 protection rating

High precision

Multi-point distributed monitoring to reduce costs

Corrosion resistance and environmental adaptability

Millimeter measurement accuracy

▋ Product Parameter

plant parameter

measuring range

100mm / 200mm is optional

certainty of measurement

0.1%F.S

Work power consumption

At about 0.54W

Sleep power consumption

At about 0.03W

Electrical connection

Waterproof five-core aviation joint

output signal

Digital signal, RS485

protocol

modbus protocol

Baud rate

Supports port rate range 2400~115200

working voltage

DC9-36V

working temperature

-20℃～60℃

Working humidity

5%-95%

temperature compensation

-35℃～60℃

Main material

Upper and lower cover aluminum alloy, tank acrylic

levels of protection

IP68

way to install

L-shaped bracket for auxiliary installation


▋ Application

  BOY-GC05 The magnetostrictive static level system is used for monitoring vertical displacement in large storage tanks, dams, high-rise buildings, foundation pits, tunnels, bridges, subways, and other applications. Can provide real-time warning and processing for settlement and tilt conditions, and provide settlement data and monitoring services for the monitoring center


▋ Working principle

BOY-GC05 The magnetostrictive static level utilizes the principle of a connector, where multiple connected pipes are connected together in a liquid tank, and the liquid level is always on the same level. When a settlement occurs at a certain point, the liquid level height of each device will change. The relative settlement of each static level can be calculated by the change in liquid level height at each monitoring point. The height of its liquid is measured by a magnetostrictive sensor, and the height of the liquid level is obtained based on the distance between the electronic chamber emitter and the floating ball.

▋ FAQ

 Q1： What is the measuring range of the instrument? ‌

Standard range 0-100mm, supports custom expansion to 200mm. ‌

Q2： Is regular calibration necessary? ‌

It is recommended to calibrate once a year, and the built-in self calibration function can extend the cycle. ‌

Q3： Can it be used in strong vibration environments? ‌

Yes, with built-in damping design. ‌ ‌

Q4： How to ensure waterproof performance? ‌

Adopting double-layer sealing rings and nano coating technology, with IP68 protection level.

Q5： Is it compatible with third-party software platforms? ‌

Support API docking and adapt to systems such as LabVIEW and SCADA. ‌

Q6： What precautions should be taken during installation? ‌

Avoid strong magnetic field sources and ensure that the verticality error of the measuring tube is less than 1 °.

Q7: How many monitoring points can a single device support? ‌

The standard version supports 8 channels and can be expanded up to a maximum of 32 channels. ‌

Q8： How long is the warranty period? ‌

The whole machine comes with a one-year warranty and lifetime technical support.
